This product line is suitable for leveling hot-rolled steel, coiled alloy-steel, coiled stainless steel etc. of normal thickness, and cutting those boards into pieces in required length.

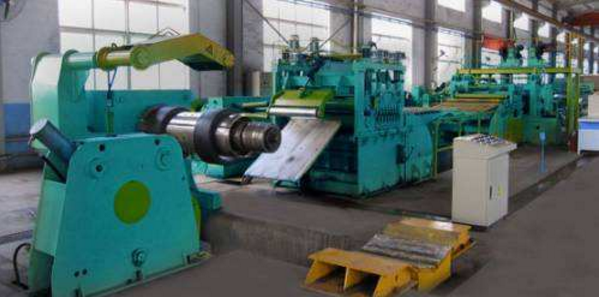

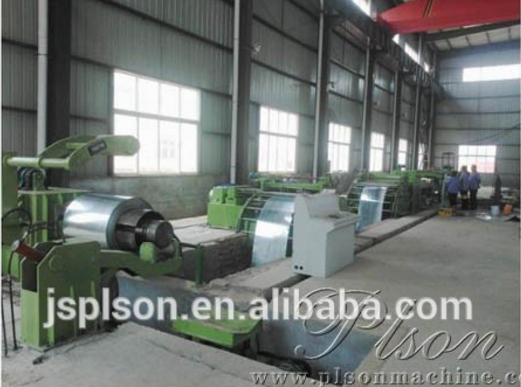

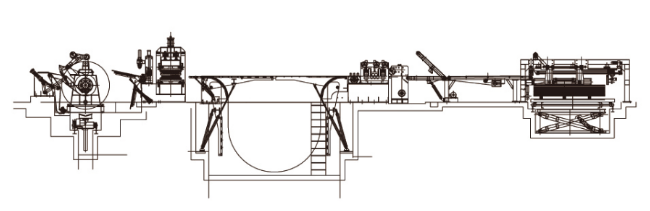

This line is usually made up of hydraulic feeding car, uncoiling machine, hydraulic board-guiding machine, conveying-correction device, transitional table, correcting machine, group of leveling machine, shearing machine, stacking tale, hydraulic system, electric controlling system etc. If required by customer, this line can also equip edge-cuting machine, longitudinal cutting machine, edge-folading machine etc. in order to get four-edge-cut blocks or cut the steel into blocks in the direction of length. We use direct-current digital control sytem from Eurotherm Limited to control the adjustable-length cutting system. This line has lots of advantages, for example being highly automated, good quality of leveling, high accuracy of shearing ,high producing-efficiency, stable and reliable performance, simple operation and maintenance etc.
Main technical data:
| Item | Unit | Range chosen |
| Thickness of steel | mm | 1.5~6, 2~8, 3~10, 4~12, 5 ~ 16 |
| Standard width of steel | mm | 1300, 1600, 2000, 2500 |
| Straight precision | mm | 1.5, 2.0 |
| Scale length presicion | mm/m2 | ±1.5~ ± 3 |
| Max. speed of line unit | m/min | ~25, ~20, ~15, |
| Loading weight of uncoiler | t | 15~35 |
| Total power of line unit | kw | 75~250 |
Price according to odering structure.
Detail specifications please contact us by e mail or tel.
