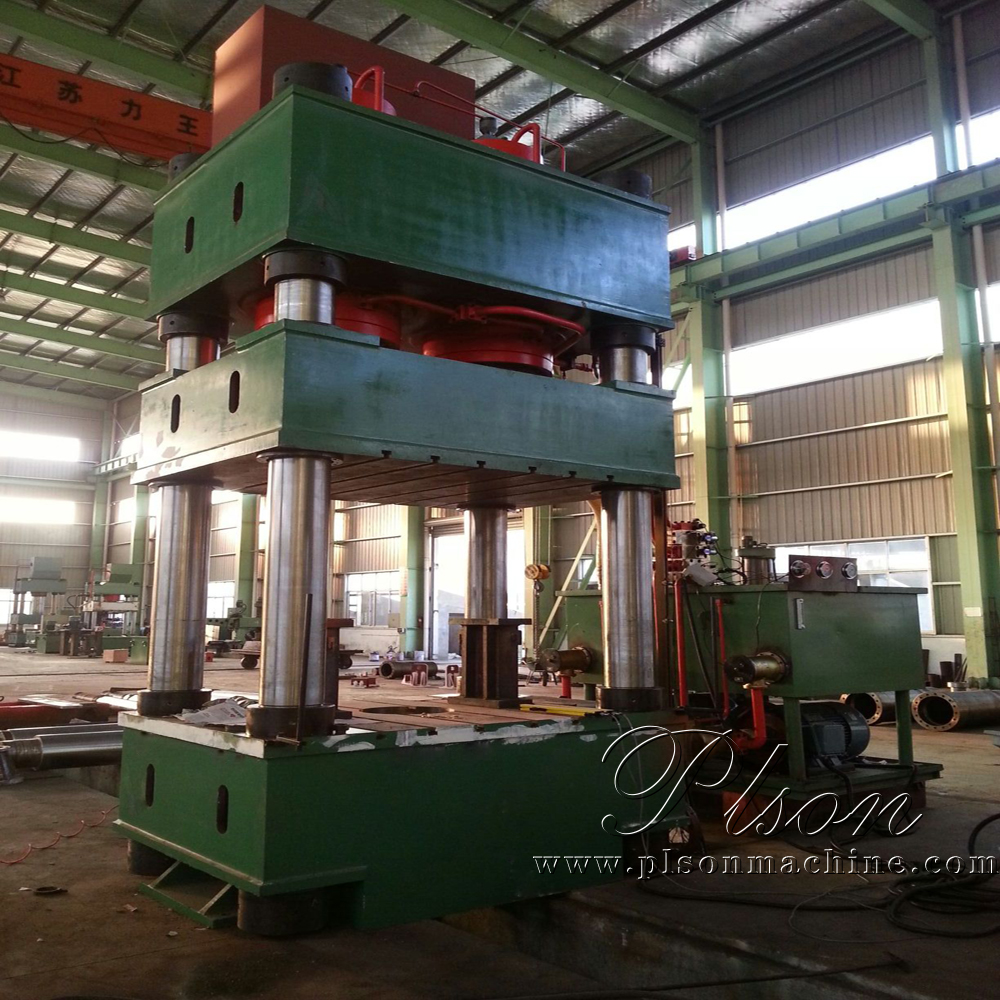

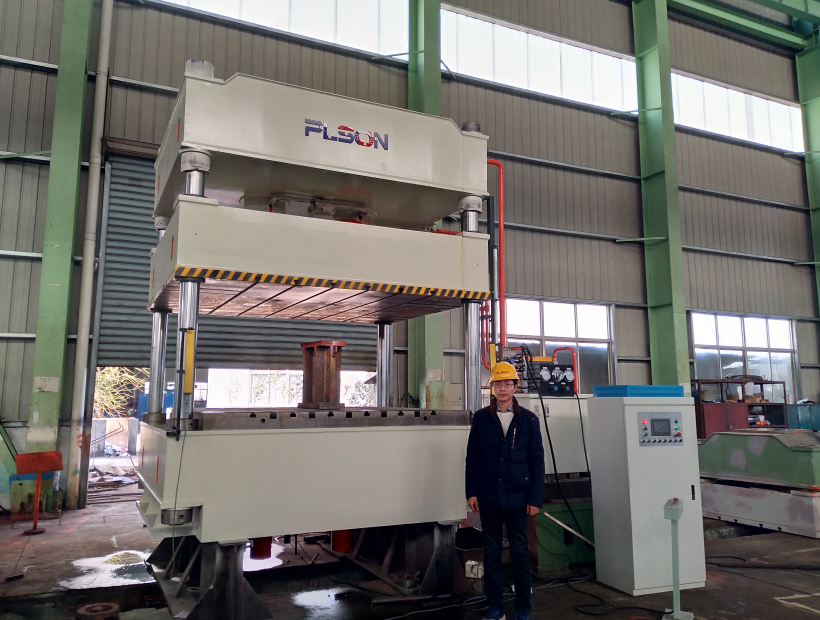

PLSON Y32 series sheet metal forming hydraulic press

PLSON Y32 series sheet metal forming hydraulic press

Name: Y32 series Hydraulic press
After-sales Service Provided: Engineers available to service machinery overseas
Product: Aluminum sheer, wheel barrow, etc
Use in: Metalforming industrial
Product description: PLSON Y32 series sheet metal forming hydraulic press
INQUIRY

Suitable for all deep drawing process, especially in the following fields:
1, Pressure Vessel, Drawing and forming for barrel and head cap.
2, deep drawing for Stainless steel sink.

3, drawing for long work piece, like bath.

4, Drawing and Forming for Big automobile panel and parts.

Technical paramet

Specification	Nominal Pressure	Ejector Pressure	Maximum Hydraulic Work Force	Maximum Slide of Stroke	Maximum Stroke of Ejector Piston	Maximum Distance Between Slide and Worktable	Dimension of Machine (L-R)	Dimension of Machine (B-A)	Motor Power
Y32-63	630	190	25	500	150	800	2000	1500	7.5
Y32-100	1000	190	25	600	200	900	2160	1504	7.5
Y32-200	2000	350	25	700	250	1100	2825	2060	15
Y32-315	3150	630	25	800	250	1250	3200	2100	22
Y32-500	5000	1000	25	900	350	1500	4060	3525	30
