Product Description

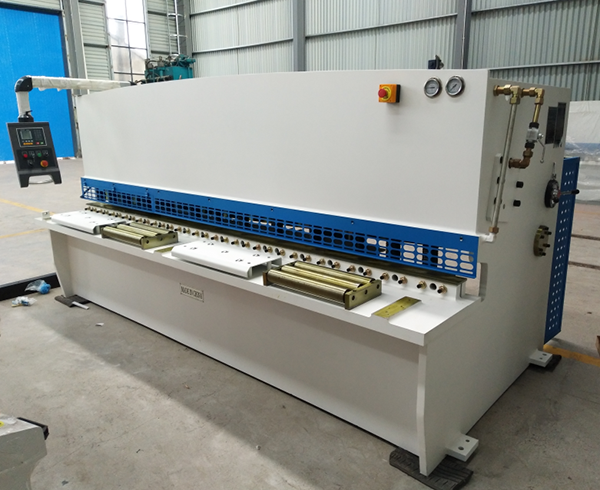

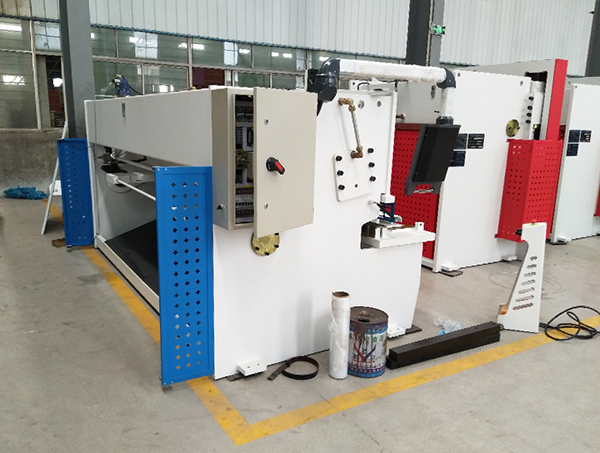

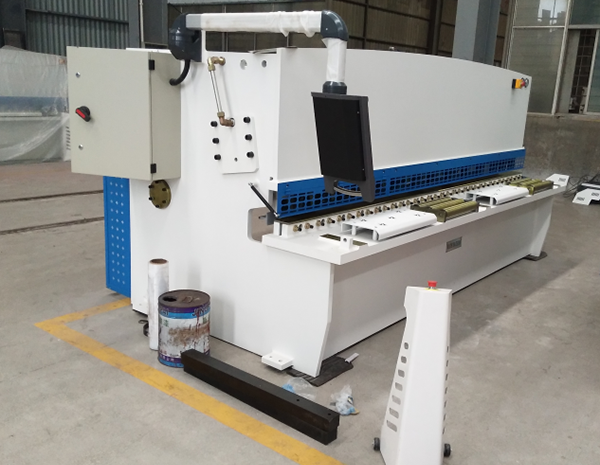

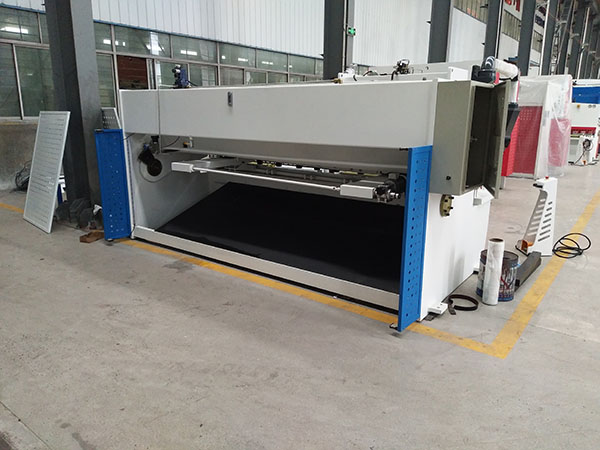

Product: 4*4100 Hydraulic Swing Beam Sheet Metal Shearing Machine
Features:
1.Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.PLSON engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.
3.3.The PLSON Shearing Machine is a Variable Rake Action machine which is produced in a variety of cutting lengths & capacity options.
3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany.
4. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard.
7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Estun E21s NC control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.

Better Cuttings:
1.Backgauge adjustment according to blade gap.
2.Backgauge retraction feature.
3.Sub-program and programming loop.
4.Sequence repeat function.
5.Auto cutting (Flying cut).

Estun E21s NC Shearing Machine Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
4.Spindle allowance offset
5.Internal time relay
6.Stock counter
7.Backgauge position display, resolution in 0.05mm
The best cutting results You can cutt longer and narrow parts with standard AC/MS8-Cutt Series.
