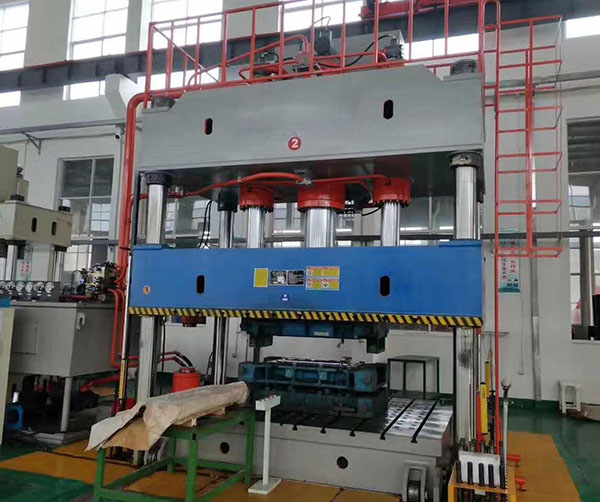

Four Column Hydraulic Press Down Stroke Machine

Four Column Hydraulic Press Down Stroke Machine

Model Number: Y27/28/32/41/78 series hydraulic press
After-sales Service Provided: Engineers available to service machinery overseas
Product name: hydraulic machine
Material: Steel Plate
Product description: Four Column Hydraulic Press Down Stroke Machine
INQUIRY

Suitable for all deep drawing process, especially in the following fields:
1, Pressure Vessel, Drawing and forming for barrel and head cap.
2, deep drawing for Stainless steel sink.

3, drawing for long work piece, like bath.

4, Drawing and Forming for Big automobile panel and parts.

Technical paramet

Item type		Unit	Y32-40	Y32-63	Y32-100	Y32-125	Y32-200	Y32-315	Y32-400	Y32-500	Y32-630	Y32-800	Y32-1000	Y32-1250
Nominal Pressure		kN	400	630	1000	1250	2000	3150	4000	5000	6300	8000	10000	12500
Ejecting Force		kN	100	160	630	630	800	800	800	1000	1000	1250	2000	2000
Knock-out Force		kN	150	125	160	180	360	450	345	570	850	720	1600	1200
The Max. Pressure of Working Fluid		MPa	25	25	25	25	25	25	25	25	25	25	25	25
The Max. Stroke of Slider		mm	320	500	630	630	710	800	800	900	1000	1000	1000	1000
The Max. Stroke of Ejector		mm	150	160	200	200	250	300	300	300	300	350	450	450
The Max. Opening Height		mm	520	800	900	900	1120	1250	1250	1500	1600	1600	1600	1800
Speed of Slider	Descend	mm/s	55	115	250	220	160	120	180	150	120	150	150	250
	working	mm/s	10-35	10-22	12-40	9-31	7-24	8-20	10-24	10-24	8-18	8-15	5-12	8-15
	Return	mm/s	105	105	200	180	120	120	250	180	125	145	75	140
Speed of Ejector	Ejecting	mm/s	170	90	120	60	60	75	120	65	65	50	60	45
Speed of Ejector	Return	mm/s	450	220	125
